"Another great EV Motor"

Utilising the EBMX high-RPM rotor design from our proven XLB-60 range, this motor features an advanced stator architecture that spins with reduced resistance, delivering rapid acceleration and high-speed performance.

With a higher KV setup, this motor still delivers strong low-end torque and instant throttle response, along with of an extended power band for sustained performance across all speeds.

Suitable for use, with an upgraded battery and includes hardware for fitment on MX5 (gearbox not included).

MTR047 Description EBMX XTA-60 Motor for Sting / Sting R Black

The motor in an electric vehicle (EV) is the component that converts electrical energy from the battery into mechanical energy to drive the vehicle. It provides propulsion by generating torque, which turns the rear wheel.

Details

Utilising the EBMX high-RPM rotor design from our proven XLB-60 range, this motor features an advanced stator architecture that spins with reduced resistance, delivering rapid acceleration and high-speed performance.

With a higher KV setup, this motor still delivers strong low-end torque and instant throttle response, along with of an extended power band for sustained performance across all speeds.

Suitable for use, with an upgraded battery and includes hardware for fitment on MX3 and MX4 (gearbox not included).

IMPORTANT INFORMATION

NOT INTENDED FOR ROAD USE: EBMX Motors are NOT designed for use on public roads or crowded areas. These motors are strictly meant for off-road use and controlled environments only.

EXPERIENCED RIDERS ONLY: These high-performance motors are recommended for experienced riders who possess the necessary skills and expertise to handle powerful machines. Novice riders are strongly advised against using our motors.

USE WITH CAUTION: The enhanced speed and power of our motors require extreme care and attentiveness. Always exercise caution and be aware of your surroundings when operating our products.

UPGRADE SAFETY EQUIPMENT: It is crucial to ensure that your bike is equipped with upgraded brakes and other safety features capable of handling the increased speed and power provided by our motors. Using the motor with stock brakes or inadequate safety measures may result in accidents and severe injuries.

ADHERE TO LOCAL LAWS: Familiarise yourself with local regulations and laws pertaining to off-road vehicle usage in your area. Always ride within designated areas and private tracks that allow for safe operation.

KEEP AWAY FROM CHILDREN: Our motors are not toys, and they must be kept out of reach of children. Never allow minors or inexperienced individuals to operate these motors.

RIDE RESPONSIBLY: Ensure that you are in a sound state of mind and not under the influence of any substances that could impair your judgment before operating the motor.

YOU WILL NEED A RACE BATTERY TO RUN THIS MOTOR

Specifications

Stator: 55mm
Power: 40kW Peak under load testing at 90V and 1000 phase amp
Rated RPM: 12000 Rated RPM
Real World Results: 35kW on 72V with 16 inch rear wheel and 42T sprocket
Recommended Gearing - 18 Inch Wheel: 48T Sprocket
Recommended Gearing - 16 Inch Wheel: 42T Sprocket
Brand: EBMX
Colour: Black
Country/Region of Manufacture: China
Current Type: AC
Features: Easy Installation
Machine Type: Street Motorcycle
Manufacturer Part Number: MTR047
Manufacturer Warranty: 2 Year
Maximum Power: 40kW
Maximum RPM: 12000
Mounting Style: Bolted
Performance Part: No
Type: Motor
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No
Voltage: 72V

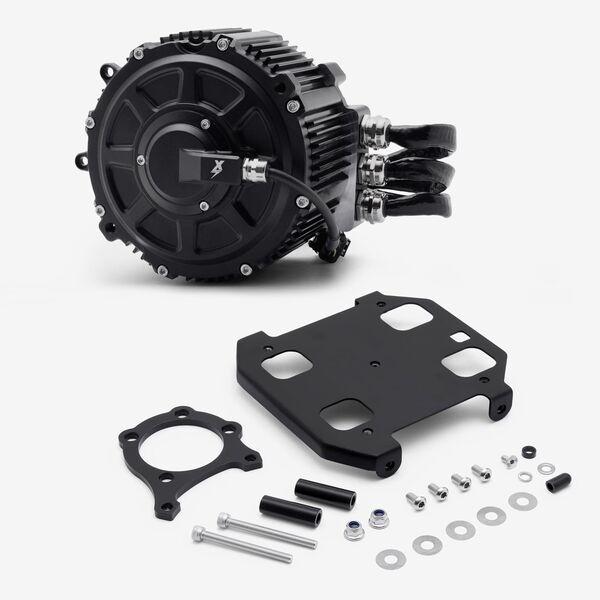

BRCKT468 Description EBMX XTA-60 Motor Mounting Kit for TL5500

Details

EBMX XTA-60 Motor Mounting Kit

Ensure a secure and robust motor installation with this specialized mounting kit.

• Designed for optimal fit and performance.
• Durable construction for long-lasting reliability.
• Facilitates straightforward motor attachment.

This kit provides essential components for a professional motor setup, contributing to the overall integrity of your vehicle's powertrain.

Specifications

Brand: EBMX
Brand Type: EBMX
Classic Part: No
Country/Region of Manufacture: China
Features: Easy Installation
Items included: Bracket
Machine Type: E-bike
Manufacturer Part Number: BRCKT468
Manufacturer Warranty: 1 Year
Performance Part: No
Reference OE/OEM Number: 135701424
Type: Bracket
Unit Quantity: 1
Universal Fitment: No

Code: MTRKT047 PLU: V9127 EAN: 5057645755968 Stator: 55mm Power: 40kW Peak under load testing at 90V and 1000 phase amp Rated RPM: 12000 Rated RPM Real World Results: 35kW on 72V with 16 inch rear wheel and 42T sprocket Recommended Gearing - 18 Inch Wheel: 48T Sprocket Recommended Gearing - 16 Inch Wheel: 42T Sprocket
